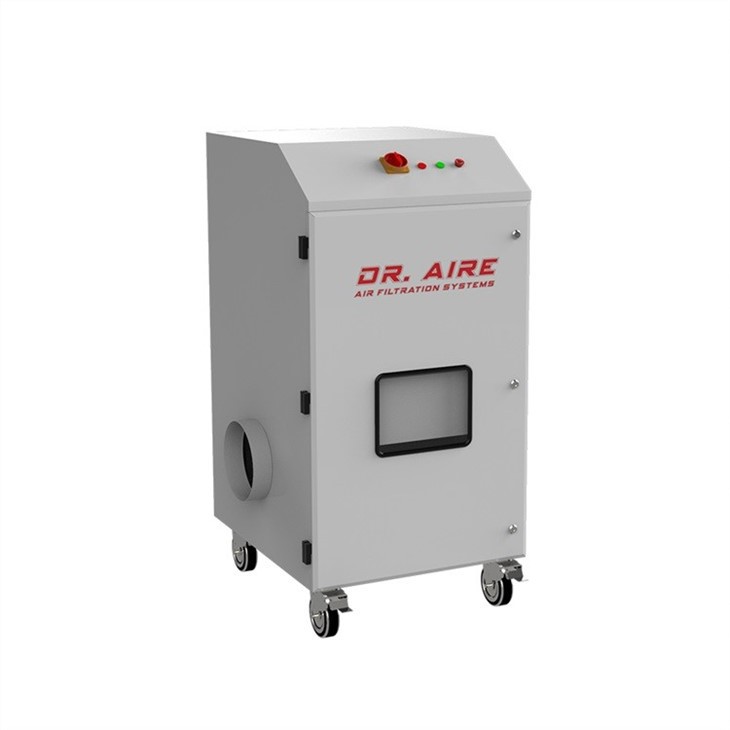

Laser Fume Extractor

Scope of application

It is suitable for laser cutting acrylic, PS board, plastic material, paper, wood, rubber, two-color board, polarizer and other materials, and purification of smoke and odor generated by paper and other materials.

Working principle

The special high-efficiency brushless fan generates large air volume and high negative pressure, sucks the smoke and waste gas into the filter, and discharges it after being purified by multi-stage filter elements such as primary effect, medium effect, high efficiency and gas filter.

Features and Benefits

1. The fuselage is small in size, low in operating noise, and easy to move by installing casters;

2. Equipped with high negative pressure brushless fan, great suction;

3. The air volume can be adjusted, and the LCD display can check the air volume and gear position of the machine in real time;

4. The control system has a filter blockage alarm function, prompting to replace the filter element in time;

5. Equipped with wireless remote control, it is convenient to operate the machine from a distance. Remote linkage start and stop interface can also be configured;

6. Four-stage large-capacity filter to ensure efficient purification of smoke, odor and harmful gases. It can be equipped with a special filter element to purify the smoke and harmful gases generated by PVC materials;

7. The dust filtration efficiency is as high as 99.7%@0.3 microns (our company self-tested), which can be discharged indoors

8. The filter element can be replaced separately, which reduces the cost of filter element use and makes maintenance and replacement of the filter element more convenient;

9. The stainless steel chassis can be customized according to customer requirements.

Product Details

1. High negative pressure brushless fan, low noise and smooth operation

Brushless DC Motor

The power system adopts a single-phase brushless motor, the 110V/220V power supply is easily connected, and the stepless speed regulation can be realized, and the air volume can be selected according to the working conditions;

The biggest advantage of brushless fans is low noise operation, smooth operation, maintenance-free, and long service life. Through our special design, the air pressure and air volume parameters are kept at a high level, so as to ensure that smoke, odor and harmful gases can be quickly extracted at the source of dust production;

Multi-blade alloy material wind wheel, professional dynamic balance correction, stable and reliable operation, avoiding the problem of long-term use deformation.

2. Professional control circuit, safe and reliable

3. LCD liquid crystal display, easy to operate

The electrical system adopts the safety modular control panel specially designed by our company, and the key components adopt imported brands and materials to fully guarantee the safety and reliability of the equipment operation. And has the industry-specific 110V and 220V input voltage compatible switching function;

LCD liquid crystal display, which can display real-time data such as fan speed, air volume, gear position, etc. The air volume unit can be switched, which is convenient to understand the working status and operation of the equipment;

When it is detected that the filter is blocked, the LCD screen of the control panel will have a filter blockage alarm symbol flashing and a buzzer alarm function. Remind the user to clean the dust or replace the filter.

4. Multi-stage filtration, special activated carbon filter element, preferred for purification of smoke, dust and odor

F8 medium efficiency filter H13 high efficiency filter gas filter

The filtration system adopts plate and frame type F8 medium efficiency filter. It is characterized by large filtering area and large dust holding capacity, which greatly reduces the use cost of consumables. It is suitable for use in industrial scenarios with a large amount of smoke.

At the same time, it is equipped with HEPA high-efficiency filter and activated carbon filter as secondary and tertiary filtration, which is applied to the conditions that require deodorization.

Using a special activated carbon filter. The iodine adsorption value, carbon tetrachloride (CTC) adsorption value and methylene blue adsorption value of activated carbon are all at excellent levels. It is suitable for processing VOC organic waste gas such as benzene, toluene, aromatic hydrocarbons, hydrogen sulfide carbon disulfide, methyl mercaptan, methyl sulfide, dimethyl disulfide, trimethylamine, styrene and other non-metallic materials produced by laser engraving leather, acrylic, kraft paper, etc. Significantly.

5. Quick-release design, quick and easy to replace the filter

The filter replacement method adopts a quick-release design. The operator only needs to use the matching external hexagon wrench to rotate 90 degrees counterclockwise to take off the filter, clean and replace it, which is convenient and quick, and ensures good air tightness.

6. Rear air inlet, variable exhaust design

The air inlet adopts the design of the rear air inlet, and customers can easily connect the air inlet according to the different placement of the equipment, reducing the length of the pipe and unnecessary winding;

For the air outlet, you can choose a long standard air outlet with a muffler for direct indoor discharge, or you can choose to add a circular air outlet to directly discharge through the pipe or connect to the central smoke exhaust system (special requirements are required when ordering is confirmed). instruction).
