Disinfection UV-C Lamp Systems Duct Mounted A01-02
Disinfection UV-C Lamp Systems Duct Mounted:
Instructions for use of UV lamps:
UV ultraviolet disinfection technology has unparalleled sterilization efficiency of other technologies. The sterilization efficiency can reach 99% -99.9%. Traditional chemical disinfection methods such as chlorine and ozone generally require 20 minutes to more than 1 hour to achieve the sterilization effect of UV C.
The main purpose of UV disinfection:
Application in public buildings; install an appropriate amount of sterilizing UV lamps in the public ventilation ducts and the air supply ducts of central air-conditioning, which can send aseptic air to the room and prevent cross-infection. It is a necessary product for sterilization and disinfection of air, instrument industry, drinking water, and utensils. According to different use requirements, there are different ways to use germicidal lamps; choose germicidal lamps with different powers, and use them scientifically to achieve disinfection.
Use professional protective glasses to avoid corneal burns, When starting the germicidal lamp, avoid direct exposure to the human body. After the germicidal lamp is turned on, people should not be in the sterilization room to prevent children from playing and touching.
Ultraviolet rays have a killing effect on organic cells. Do not long-term exposure to pets and plants.
Do not use germicidal lamps as lighting lamps, disinfection should be moderate, and it is not recommended to keep UV lamps on for a long time.
After disinfecting the room, please open the windows for ventilation.
Damaged or used lamp should not be placed next to people, and should not be thrown into a place with water, so as not to pollute the water source.

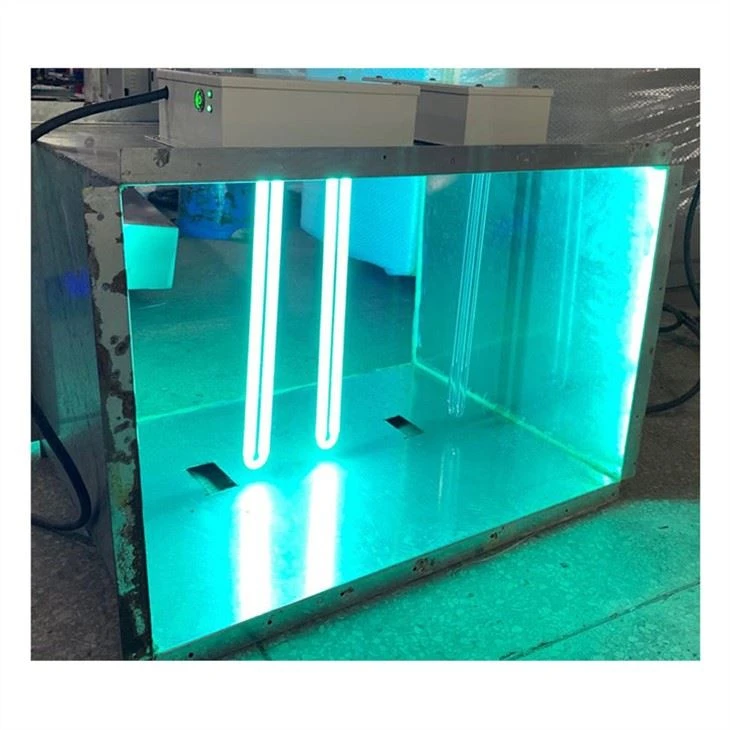

Disinfection UV-C Lamp Systems Duct Mounted
Correct use method:
At present, the ultraviolet disinfection lamp used in China has a high radiation intensity and a longer-distance disinfection and sterilization effect. When using, be sure to use it under no one to avoid prolonged exposure to human eyes and skin.
When using ultraviolet light to irradiate poisons, no one should be present to avoid injury caused by direct exposure of ultraviolet rays to human eyes and skin.
Ultraviolet rays are non-penetrating and spread in a straight line. There are three blind areas for sterilization: 1. Only the upper surface of the object (food) can be sterilized and disinfected, but the lower surface of the object cannot be sterilized and disinfected; 2. When multiple objects overlap, the overlapping part of the surface of the object cannot be sterilized. Sterilization and disinfection; 3. Only the outer surface of the object can be sterilized and disinfected, but the inside of the object can not be sterilized and disinfected! That is to say, the place where the ultraviolet (invisible light) cannot be irradiated can not play the role of sterilization and disinfection.
Model | Air Flow (M³/H) | All over Size | Power Supply | UV wave (nm) | UV Qty (PCS) | Total Power (W) | UV light span (hours) |
DGRH-ETI-A01 | 500-1000 | 160*290*85 | 220VAC / 50~60Hz | 254+185 or 254 only | 1 | 50 | 9000-10000 |
DGRH-ETI-A02 | 750-1500 | 160*290*85 | 254+185 or 254 only | 1 | 90 | 9000-10000 | |
DGRH-ETI-B01 | 1000-2000 | 200*290*85 | 254+185 or 254 only | 2 | 100 | 9000-10000 | |
DGRH-ETI-B02 | 1500-3000 | 200*290*85 | 254+185 or 254 only | 2 | 180 | 9000-10000 |
